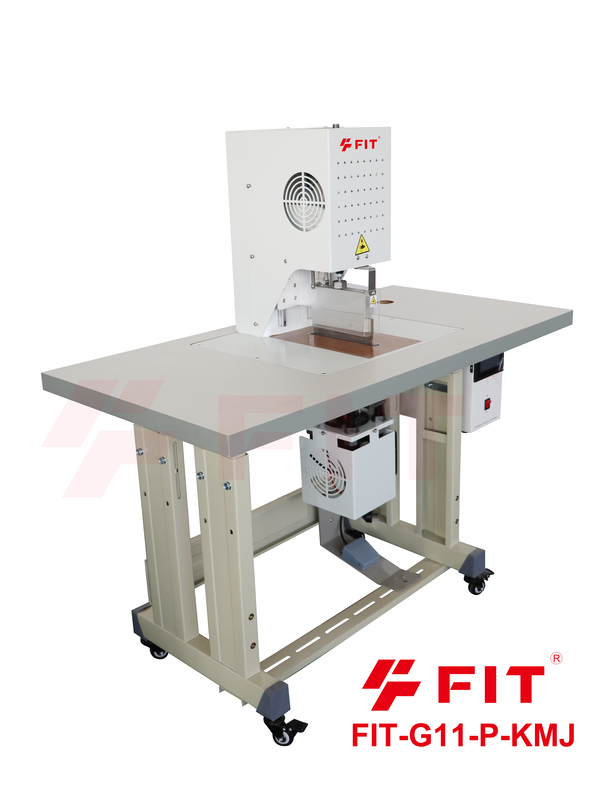

FIT-G11-P-KMJ

Seamless Placket Machine (Penumatic)

Scope of application:

Shirts, POLO shirts and other seamless clothing open front. Elastic,rubber, PVC and other cutting and fusion process.

Performance and features:

20K automatic frequency tracking ultrasonic wave at 20000Hz

per second, maximum power 2000w, imported mold steel knife, welding, cutting beautiful and neat.

Basic parameters

1.Working voltage AC220V-10%,50Hz-60H.Current >15A.

2.Working environment 5-45°C.

3.Working air pressure 0.3-0.5Mpa, cylinder stroke 0-50mm adjustable.

Machine weight(N.W./G.W.) : 96KG/128KG

Package dimension(MM) : 1260*620*1330
