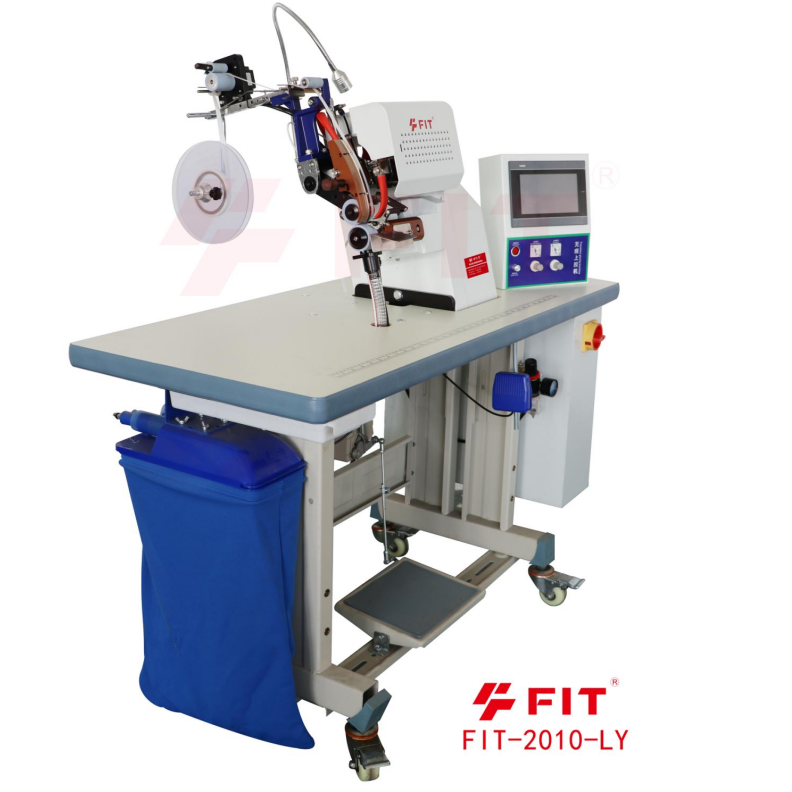

FIT-2010-LY

BUDDING MACHINE

Scope Of Application

This machine is suitable for gluing, slicing and edging of all the seamless products such as seamless underwear, seamless T-shirt, seamless shirt, seamless bra, seamless eye mask, seamless sleeve and knee pads.

Equipment Advantages:

(1)The speed of the upper and lower rubber wheels can be adjusted independently.

(2)The heating tank can adjust the temperature independently (preheating tank).

(3)There are two kinds of movable and fixed rubber slots, which can be selected according to the processing products (adjustable rubber slots are suitable for different specifications of rubber strips).

(4) Blower mode, there are internal blower, and external blower, which can be selected according to the processed products (external blower is the air nozzle outside the rubber groove, mainly blowing hot air to the sticky part of the tape is heated evenly; The internal blowing air is the position where there is an outlet in the rubber groove and the hot air blows white adhesive paper without viscosity. The external blower is heated well, and the internal blower will not block the operator's line of sight).

(5)Dispensing and sheet glue are the preferred equipment.

(6)Wheel structure principle, can be suitable for straight line, arc parts glue, cutting edge, stick.

(7)Preheat the heating system.

(8)Adjustable handle to adjust the upper and lower wheel height.

(9)The speed of the upper and lower wheels, the speed of the conveyor motor is accurate and adjustable.

Speed ： 0-7cm/S

Air pressure ：0.5Mpa

Belt width ：3.0cm(Standard)-can customized

Cutter supply:0-3000rpm

Power supply : 220V-240VAC/110VAC

Power:1860w

Heating tank width: 3.0cm(Standard)-can customized

Machine weight(N.W/G.W) : 90KG /122KG

Machine dimension(mm) : 1210*560*1180

Package dimension(mm) : 1270*640*1430
